VACUUM REDESIGN

For this project I was tasked with re-designing an existing product to make it tailored to fictional persona. This focussed on user research and identifying existing pain points of the vacuum, to ultimately design ways to amend its flaws whilst keeping aesthetically satisfactory.

Engineer drawing
2025

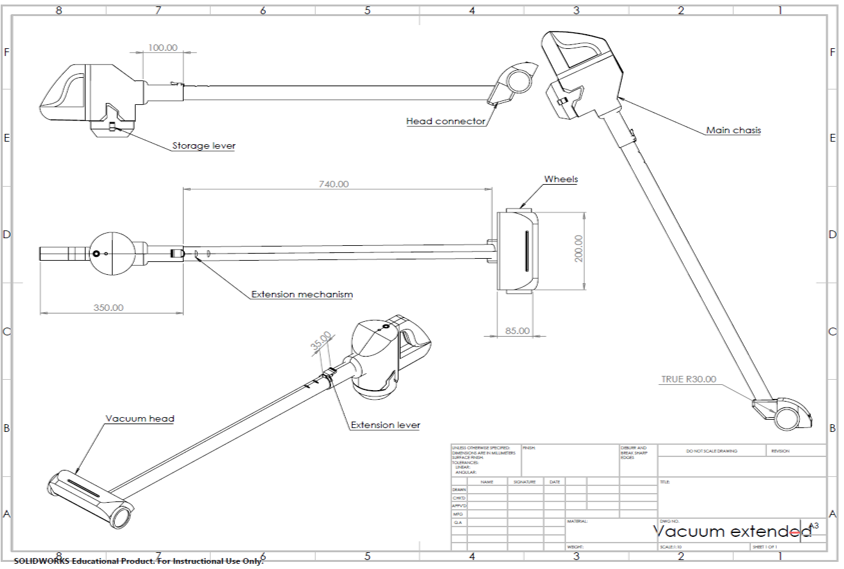

  • This image shows the engineer drawing for the extended version of the vacuum. Here different parts can be seen labelled accordingly as well as markings to show split lines of the design.

Engineer drawing - Handheld
2025

  • This image shows the engineer drawing of the handheld version of the vacuum. My given persona was the archetype to clean often and little, hence the need to design two forms and the reduced storage size, making the product significantly lighter.

Render Images
2025

  • This image shows render images of the vacuum using the blender software. The materials are primarily plastic to remain lightweight, but kept black on silver colours to resemble high quality. The product is aimed to be minimalistic and up to date with modern approach design,
