SEGA CONTROLLER

For this project I was tasked with digitally recreating an existing product, considering both the aesthetics and internals down to a replica of the original. This project focussed on the process of how products are assembled; through lip and grooves, injection moulding and split lines, aiming to make me learn the design for manufacture.

Isometric view
2025

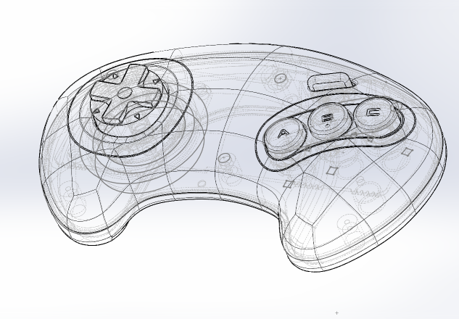

  • This is a view of the controller in perspective. It is displayed in transparent form to show the alignment of each part with one another; as well as showing some construction geometry.

Internals and PCB
2025

  • This image shows the internals of the controller, specifically where the PCB goes and its alignment with the location bosses. It also shows aspects like the D-Pad, start and interaction buttons which pierce the top half of the controller shell.

Bottom Half internals
2025

  • This image shows the bottom half of the controller and the design of the inside. Here there can be seen the location bosses, lip and groove as well as holes for cable connectors and wiring.

Engineering drawing
2025

  • This image shows an engineering drawing of the controller body as well as front, perspective and exploded views.
